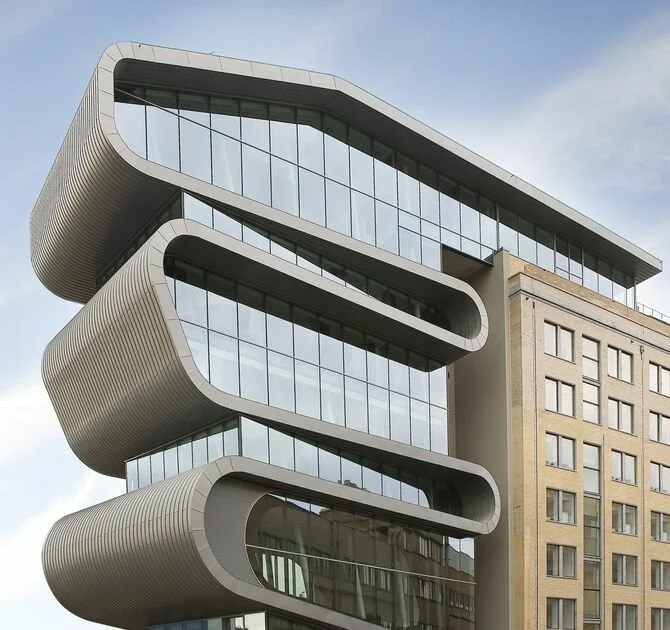

ConceptWall 60 (CW60)
Impressive thermal and AWW capabilities.
Flexibility in building shapes and profile designs.
Remarkable load-bearing strength and extensive spans.
Personalisation Options
Inclined

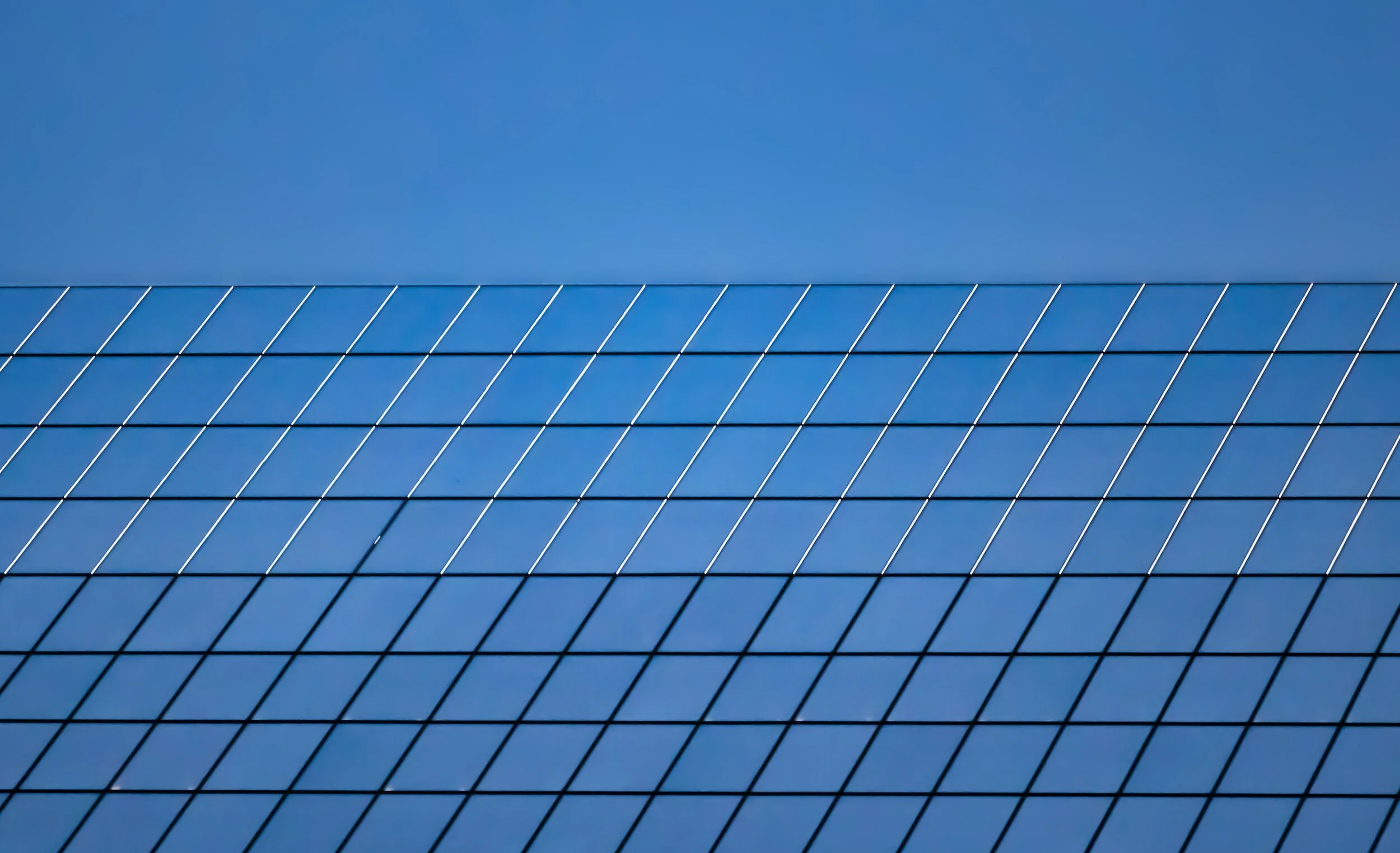

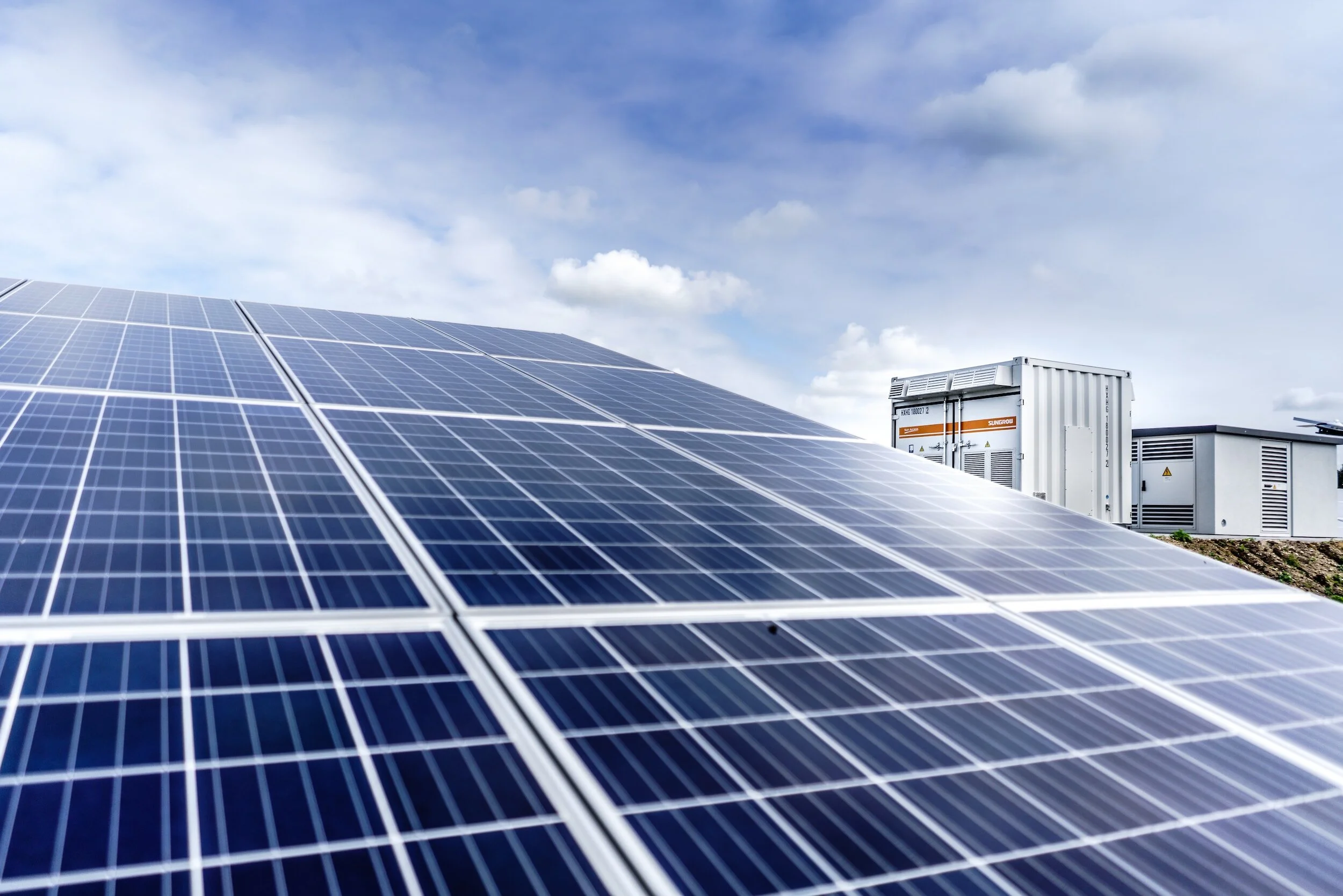

Solar Panel

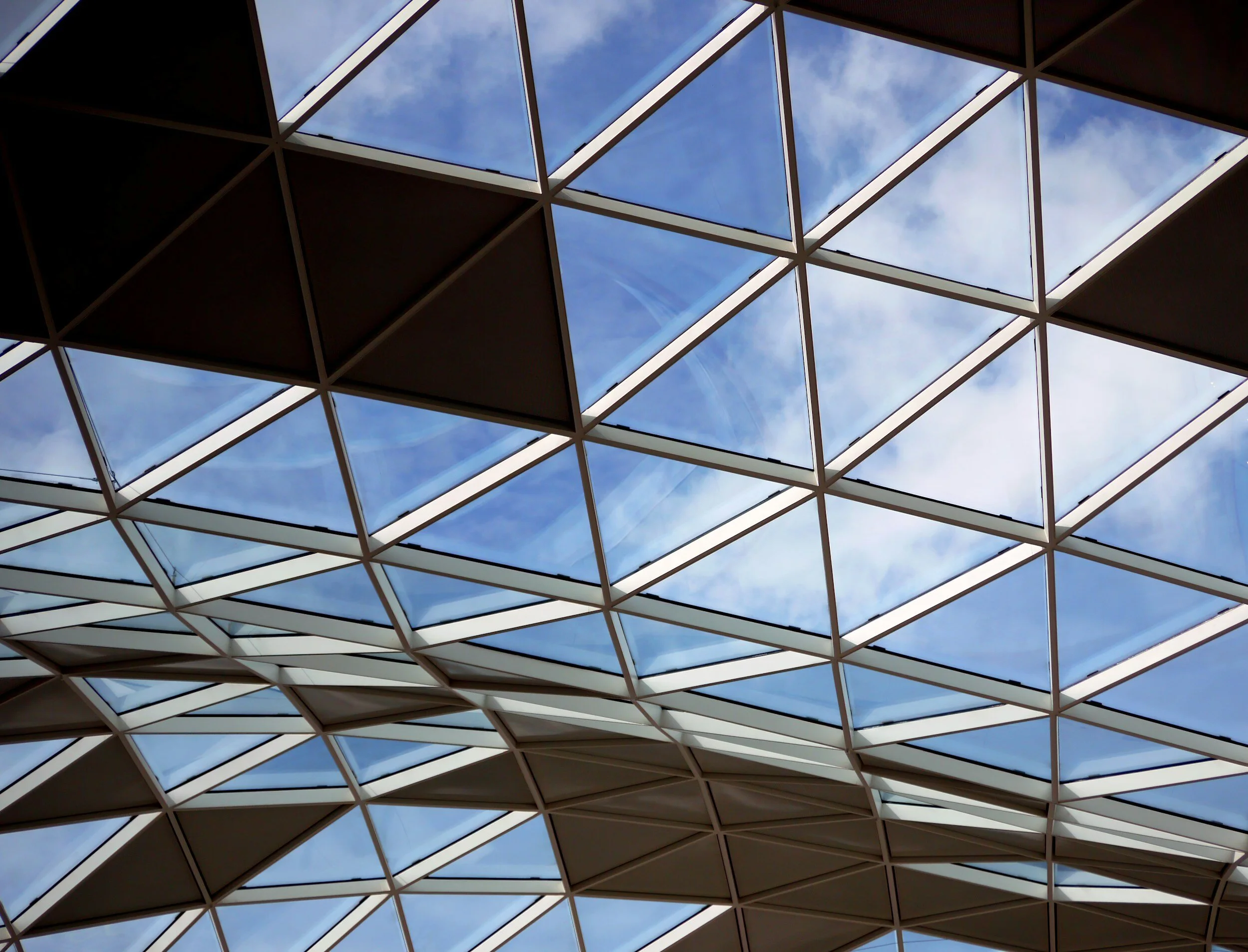

Roof
Solar Shading
Clip-on Cover Cap
“The ConceptWall 60 curtain wall system is ideal for higher wind load areas thanks to stronger aluminium profiles and larger glass rebates, compared to ConceptWall 50. Its functional design makes manufacturing and installation equally easy.”
Technical Details
Performance
Energy
Thermal Insulation - Uf = 0.6 W/m2K
Comfort
Air tightness = AE 1950 (1950Pa)
Water tightness = RE1950 (1950Pa)
Wind load resistance = E2400 (2400Pa)
Safety
Burglar resistance = RC2RC3
Impact resistance = I5/E5
Overall Dimensions
Max. dimensions & weight
Max. weight of glass = 750kg
Min. intertia mullion - Ix = 45cm4
Max. intertia mullion - Ix = 1940cm4
Min. intertia transom - Ix = 45cm4
Sightlines
Min. width T-profile = 60mm
Min. visible width (interior view) = 60mm
Min. visible width (exterior view) = 60mm
Min. depth mullion = 62.5mm
Glazing
Dimensions
Min. glass thickness - frame/element = 6mm
Max. glass thickness - frame/element = 60mm
Glazing method
Dry glazing/External glazing/Pressure plate glazing/Structural Glued Glazing/Structural clamped glazing
