HALO System 10 T&T

Tilt and Turn design for inward opening.

Ventilation mode and easy window cleaning.

Safety features, diverse styles, colors available.

Personalisation Options

Flyscreen

Balustrade

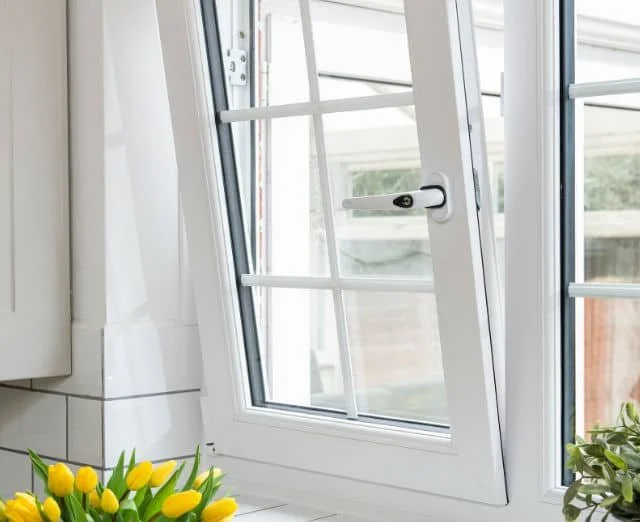

“This Tilt and Turn Window is popular where an inward opening application is required, for instance, where window shutters prevent a window from opening outwards. It operates simply into ‘ventilation mode’, where the top of the sash tilts inwards. On closing the sash and further rotating the handle, the hinge mechanism is engaged which makes the sash swing inwards for an easier and safer way to clean windowpane.”

Technical Details

Performance

Energy

Thermal Insulation - Uw = 1.3 W/m2K (Double Glazed)

Thermal Insulation - Uw = 1.0 W/m2K (Triple Glazed)

Comfort

Air tightness = Class 4 (600Pa)

Water tightness = Class 9A (600Pa)

Wind load resistance = Class C# (2400Pa)

Safety

Burglar resistance = PAS24

Overall Dimensions

Maximum Dimensions

Maximum sash sizes = Tilt & Turn: 1414mm x 1414mm

Outer frames = 56mm, 72mm and 84mm outer frames

Mullions = 70mm or 95mm mullions

Sash = Tilt & Turn sash

Glazing

Glazing beads

24mm sculptured

24mm bevelled

28mm sculptured

28mm bevelled

32mm sculptured

32mm bevelled

36mm bevelled

40mm bevelled

Glazing method

Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
