HiFinity
Fully concealed profiles.
Unparalleled design flexibility, tailored to mee the requirements of every project.
Graceful lines and uninterrupted panoramic views
Personalisation Options
Flyscreen
Balustrade
Glass Corner
Zero Thershold
Concealed Drainage

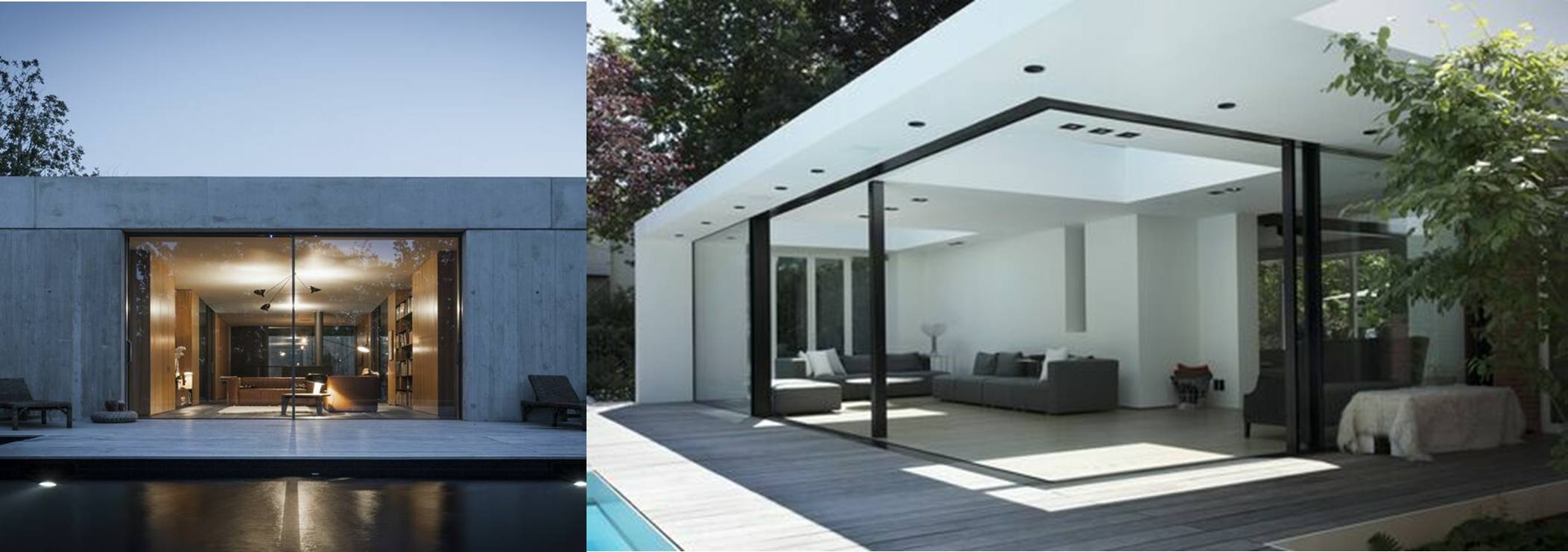

“HiFinity's ultra-slim profiles create seemingly endless transparent surfaces with a minimalist look. The elegant aluminium sliding system combines an infinite view with impressive performances. The perfect choice for any low-energy contemporary building.”
Technical Details
Performance
Energy
Thermal Insulation - Uw = 0.87 W/m2K
Comfort
Air tightness = Class 4 (600Pa)
Water tightness = Class E750 (750Pa)
Wind load resistance = Class C5 (2000Pa)
Safety
Burglar resistance = PAS24RC2
Overall Dimensions
Max. dimension & weight
Min. height of element = 1901mm
Max. height of element = 4165mm
Min. width of element = 2097mm
Min. height of vent = 1800mm
Max. height of vent = 4000mm
Min. width of vent = 1000mm
Max. width of vent = 3500mm
Max. weight of vent = 750kg
Max. weight of fixed part = 1200kg
Glazing
Dimensions
Rebate height = 17mm
Min. glass thickness of frame = 36mm
Max. glass thickness of frame = 54mm
Min. glass thickness of vent = 36mm
Max. glass thickness of vent = 54mm
Glazing method
Envelope glazing/Structural Glued/Glazing
