AGILA Sliding Door

Modern, versatile, and open.

Slim sightlines for light and freedom.

Complete solution with advanced security features.

Personalisation Options

Flyscreen

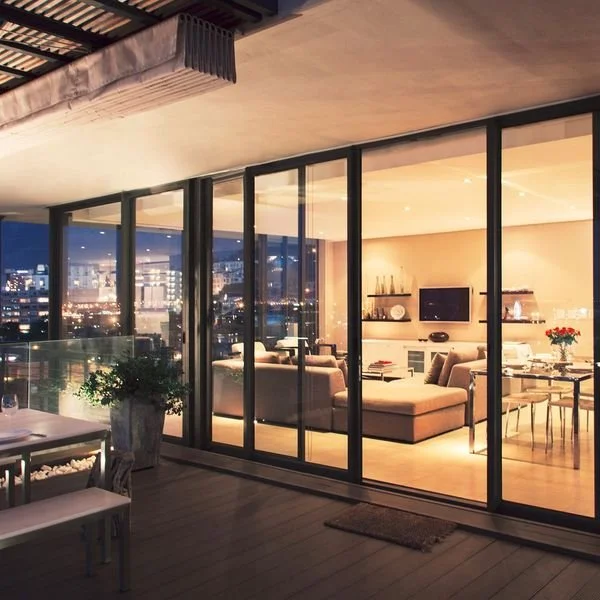

“AGILA sliding doors are perfect for modern living, combining superior design and engineering to bring outstanding versatility and create a feeling of openness in any home. The sliding door offers slim sightlines, thereby adding light and freedom and is ideal as a traditional patio door, entrance door or a door leading to a conservatory.”

Technical Details

Performance

Energy

Thermal Insulation - Uw = 1.4 W/m2K (Double Glazed)

Comfort

Air tightness = Class 4 (600Pa)

Water tightness = Class 9A (600Pa)

Wind load resistance = Class C4 (1600Pa)

Safety

Burglar resistance = PAS24

Overall Dimensions

Max Dimensions & Weight

Profile depth = 86mm/160mm

Maximum size = Up to 5m x 2.5m (dependent on configuration)

Max. sash weight = 100 kg per door using a 3 wheel roller

Max. sash weight = 160 kg per door using 5 wheel roller

Further options

Mechanical joint for larger sizes and ease of manouverability

Glazing

Dimensions

Thickness = 4mm - 36 mm

Glazing method

Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
