TOTAL70R
Excellent thermal properties for energy savings.
Complies with Part L Building Regulations.
Low maintenance with smooth gloss finish.
Personalisation Options
Flyscreen
Balustrade

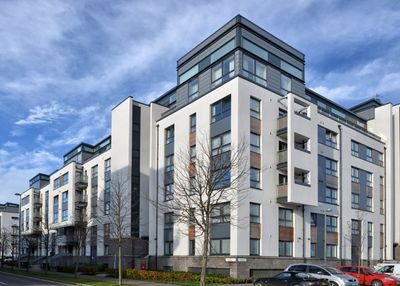

“The TOTAL70R PVCu fully reversible windows give a contemporary appearance to any building and are designed to maximise natural light. Their unique full rotation reversible action allows for a high level of ventilation as well as easy maintenance, where the external face can be cleaned from the inside of the room.”
Technical Details
Performance
Energy
Thermal Insulation - Uw = 1.0 W/m2K
Comfort
Air tightness = Class 4 (600Pa)
Water tightness = Class 9A (600Pa)
Wind load resistance = Class C4 (1600Pa)
Safety
Burglar resistance = PAS24 & BS7950
Overall Dimensions
Max. dimension & weight
Profile depth = 70mm
Maximum window size = 1400 x 1400 mm
Maximum sash weight = 60kg
Glazing
Dimensions
Thickness = Up to 44mm
Glazing method
Dry glazing/Siliconised glazing/Internal glazing/glazing bead
