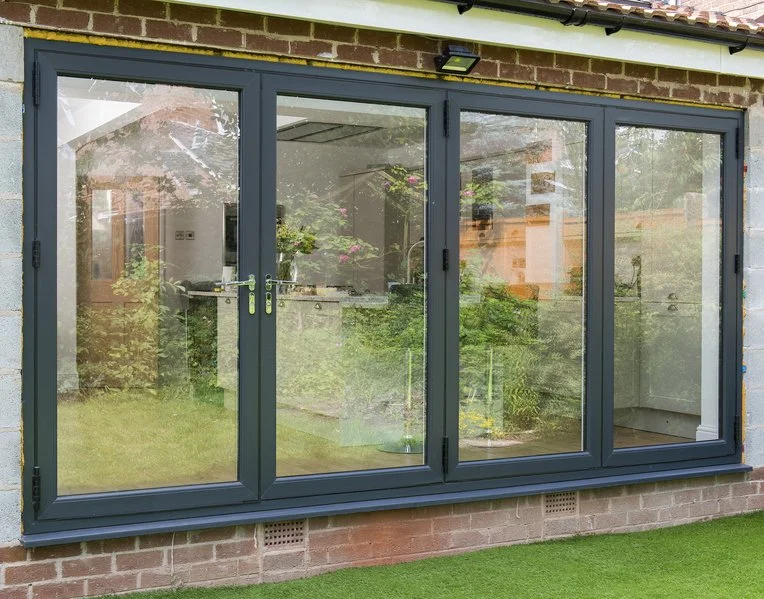

IMAGINE Bifold

Modern, versatile, and open.

Complete solution with advanced security features.

Slim sightlines for light and freedom.

“Its slender and user-frieImagine Bi-Fold Door sashes glide along the rail, concertina and stow away using minimal space. Imagine Bi-Fold Doors have a completely flush finish and are available with a choice of 19 configurations, up to 7 sashes in width, bevelled or sculptured profile, mechanical or welded joints, inward or outward openings and a variety of thresholds allowing the door to be tailored to any specification.ndly design makes the SlimLine 38 high-insulation system the perfect fit for any contemporary project. The durable aluminium windows and doors offer unlimited design freedom thanks to their multiple minimalistic variants.”

Technical Details

Performance

Energy

Thermal Insulation - Uw = 1.3 W/m2K (Double Glazed)

Thermal Insulation - Uw = 0.91 W/m2K (Triple Glazed)

Comfort

Air tightness = Class 4 (600Pa)

Water tightness = Class 9A (600Pa)

Wind load resistance = Class C4 (1600Pa)

Safety

Burglar resistance = PAS24

Overall Dimensions

Maximum Dimensions

Maximum sash sizes = Individual leaf: 998mm x 2103mm

Maximum overall width: 6000mm

Outer frame = 65mm outer frame

Mullions

68mm or 82mm mullions

115mm midrail

Sash

80mm bevelled door sash

Glazing

Glazing beads

28mm bevelled

28mm sculptured

36mm bevelled

40mm bevelled

44mm bevelled

Glazing method

Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
