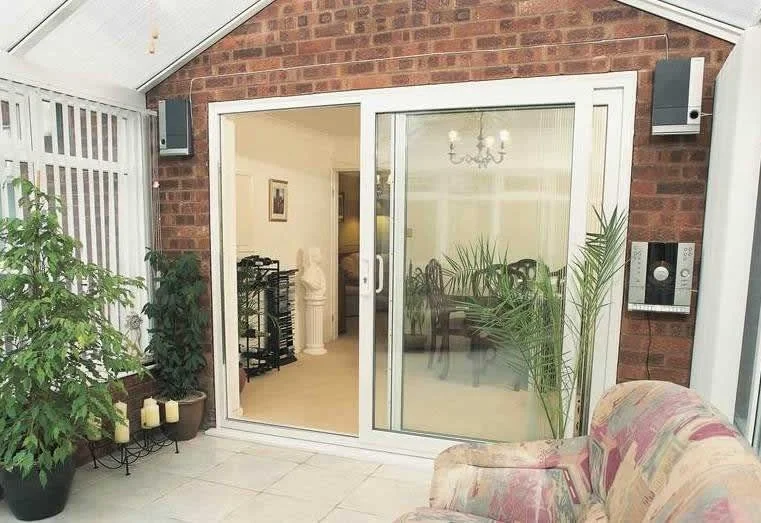

IMAGINE Patio
Slim sightlines for more light and enhanced view.
Low threshold, reversible track, and customizable laminates.
Flexible design; opens left, right, or center.
Personalisation Options
Flyscreen
“Versatile and functional; the Imagine Patio Door can be tailored to any application with a range of optional configurations including; a choice of two, three or four pane opening sashes, an option for both doors to slide, internal or external sliding sashes, and multiple thresholds (including a low easy access option which can be Part M compliant.)”
Technical Details
Performance
Energy
Thermal Insulation - Uw = 1.4 W/m2K (Double Glazed)
Thermal Insulation - Uw = 1.2 W/m2K (Triple Glazed)
Comfort
Air tightness = Class 4 (600Pa)
Water tightness = Class 9A (600Pa)
Wind load resistance = Class C4 (1600Pa)
Safety
Burglar resistance = PAS24
Overall Dimensions
Maximum sash sizes
Patio doorsets 2/3/4: 1053mm x 2074mm
Patio doorsets 2/3/4: 1503mm x 2329mm
Outer frame
58mm outer frame
Midrails
116mm bevelled midrail
Sash
90mm bevelled door sash
Glazing
Glazing beads
28mm bevelled
28mm sculptured
32mm bevelled
Ancillaries
Frame extensions and cills
Glazing method
Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
