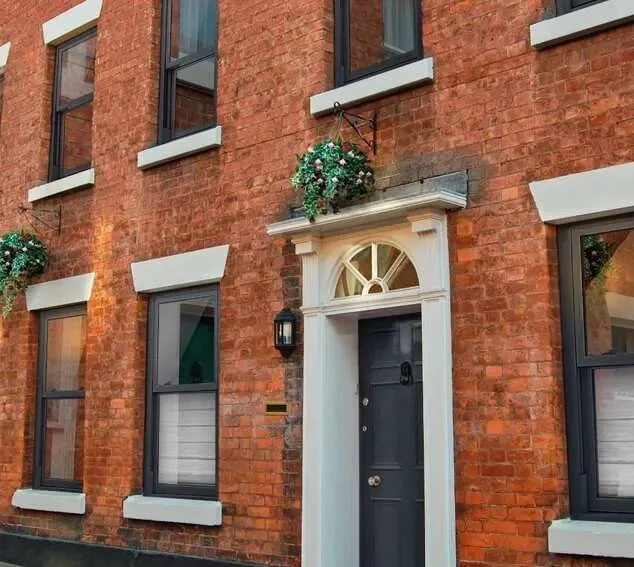

IMAGINE Vertical Slider
Classic design with modern features.
Spring and spiral balances, unique tilt facility
Inward opening for easy outside glass cleaning
Personalisation Options
Flyscreen
“The Imagine Vertical Slider carries all the beauty of a design classic, combined with the latest industry thinking. Spring and spiral balances and a unique tilt facility allows the sashes to open inwards for easy cleaning of the outside glass.”
Technical Details
Performance
Energy
Thermal Insulation - Uw = 1.4 W/m2K (Double Glazed)
Thermal Insulation - Uw = 1.2 W/m2K (Triple Glazed)
Comfort
Air tightness = Class 4 (600Pa)
Water tightness = Class 9A (600Pa)
Wind load resistance = Class C# (2400Pa)
Safety
Burglar resistance = PAS24 & SBD
Overall Dimensions
Maximum sash sizes
1400mm (w) x 2450mm (h)
Outer frame
70mm x 146mm outer frame
Sash
50mm upper sash
64mm lower sash
105mm lower sash bottom rail
Glazing
Glazing beads
28mm sculptured
32mm sculptured
Ancillaries
Frame extensions and cills
Range of coupling options
Range of bay pole options
Glazing method
Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
