MATRIX FS T&T
Matrix Fully Sculptured system for durability and security.
Low U-values for excellent thermal performance.
Various colors and woodgrain options available.
Personalisation Options
Flyscreen
Balustrade

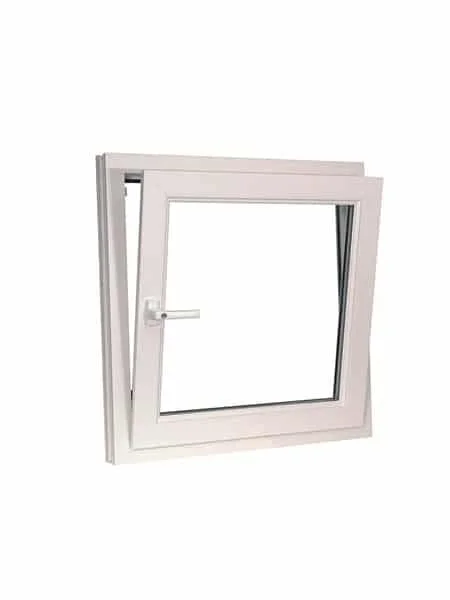

“Part of the Matrix Fully Sculptured system, this VEKA Tilt and Turn window, includes steel reinforcement for advanced durability, security and thermal performance. U-values are as low as 1.4 W/m2K with double glazing and 1.0 W/m2K with triple glazing.”
Technical Details
Performance
Energy
Thermal Insulation - Uw = 1.4 W/m2K (Double Glazed)
Thermal Insulation - Uw = 1.0 W/m2K (Triple Glazed)
Comfort
Air tightness = Class 4 (600Pa)
Water tightness = Class 9A (600Pa)
Wind load resistance = Class C4 (1600Pa)
Safety
Burglar resistance = PAS24
Overall Dimensions
Maximum Dimension & Weight
Maximum sash sizes = Tilt & Turn: 1562mm x 1562mm
Outer frames = 56mm, 70mm and 85mm outer frames
Mullions = 64mm or 86mm mullions
Sash = 80mm Tilt & Turn sash
Glazing
Glazing beads
28mm sculptured
32mm sculptured
36mm sculptured
40mm sculptured
Glazing method
Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
