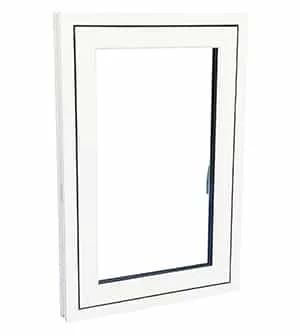

VEKA FlushSash
Excellent thermal properties for energy savings.
Complies with Part L Building Regulations.
Low maintenance with smooth gloss finish.
Personalisation Options
Flyscreen
Balustrade
“Despite its traditional appearance, its performance is anything but! Available in either 28mm double glazed units or 32mm triple glazed units, affording consumers the option of windows with impressive thermal and acoustic insulation properties.”
Technical Details
Performance
Energy
Thermal Insulation - Uw = 1.3 W/m2K (Double Glazed)
Thermal Insulation - Uw = 1.1 W/m2K (Triple Glazed)
Comfort
Air tightness = Class 4 (600Pa)
Water tightness = Class 9A (600Pa)
Wind load resistance = Class C# (2400Pa)
Safety
Burglar resistance = PAS24
Overall Dimensions
Maximum Dimensions & Weight
Maximum sash sizes = Top hung: 1376mm x 1376mm
Maximum sash sizes = Side hung: 776mm x 1526mm
Maximum sash sizes = Fixed light: 3000mm x 3000mm
Outer frames = 56mm, 70mm and 85mm outer frames
Mullions = 64mm or 86mm mullions
Sash = 61mm FlushSash
Glazing
Glazing beads
28mm bevelled
28mm sculptured
32mm bevelled
36mm bevelled
Glazing method
Dry glazing/Siliconised glazing/Internal glazing/Glazing bead
